    We pay much attention to management and quality and have invited the most famous experts in wire mesh as advisors of our factory. This ensures that our wire mesh machines are made with good quality and high efficiency.

    Our mission: To become number one of China; to create international brand.

    English/Products List/Wire Mesh Fence/Wire Mesh Fence

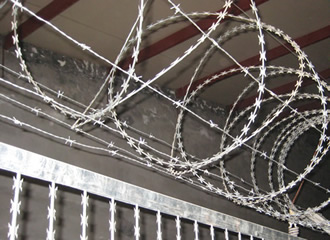

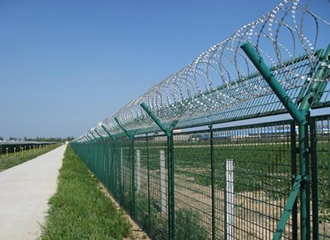

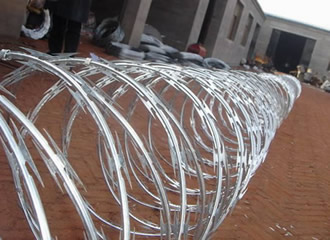

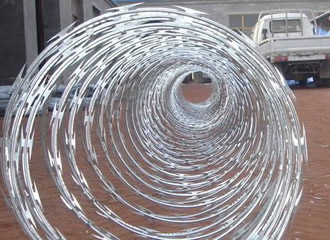

    Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

    Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

    Reference Number

    Blade Style

    Thickness

    Wire Dia

    Barb
    Length

    Barb
    Width

    Barb
    spacing

    BTO-12

    0.5±0.05

    2.5±0.1

    12±1

    15±1

    26±1

    BTO-18

    0.5±0.05

    2.5±0.1

    18±1

    15±1

    33±1

    BTO-22

    0.5±0.05

    2.5±0.1

    22±1

    15±1

    34±1

    BTO-28

    0.5±0.05

    2.5

    28

    15

    45±1

    BTO-30

    0.5±0.05

    2.5

    30

    18

    45±1

    CBT-60

    0.6±0.05

    2.5±0.1

    60±2

    32±1

    100±2

    CBT-65

    0.6±0.05

    2.5±0.1

    65±2

    21±1

    100±2


    Outside Diameter

    No. of Loops

    Standard Length per Coil

    Type

    Notes

    450mm

    33

    8M

    CBT-65

    Single coil

    500mm

    41

    10M

    CBT-65

    Single coil

    700mm

    41

    10M

    CBT-65

    Single coil

    960mm

    53

    13M

    CBT-65

    Single coil

    500mm

    102

    16M

    BTO-10.15.22

    Cross type

    600mm

    86

    14M

    BTO-10.15.22

    Cross type

    700mm

    72

    12M

    BTO-10.15.22

    Cross type

    800mm

    64

    10M

    BTO-10.15.22

    Cross type

    960mm

    52

    9M

    BTO-10.15.22

    Cross type

    Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
    Standard materials are either galvanized or stainless steel.
    Standard packages products are shown in the tables above, special specifications available on request.
